Running an efficient building has many benefits (reduced operating expenses, prolonged building life, satisfied tenants), yet there are barriers to achieving this goal for a single building, let alone a portfolio of diverse facilities.  To address this challenge Pacific Medical Buildings (PMB) has implemented a program designed to systematically identify and implement energy efficiency measures across their portfolio.

Early program results have delivered energy cost savings of over 20% per building, representing annual cost savings of more than $65,000 across just two buildings.  As a result, PMB is benefiting from lower operational expenses – savings which are passed on to tenants to keep lease rates competitive and occupancy rates high.

PMB’s Process

PMB teamed with energy-efficiency consulting firm Altura Associates to develop implement a portfolio-wide program to improve performance. The result is a unique Connected Building Commissioning Process (CBCx). The process has four main components:

  1. Discover – Building asset and performance information are gathered and benchmarked,
  2. Connect – Remote access to systems is established and stranded data are unlocked,
  3. Implement – Changes are made to building systems in order to optimize energy savings and occupant comfort,
  4. Train – Building operating staff are given the tools and techniques to continue to effectively manage optimized systems performance.

1.    Discover: Analyze Current Operations

In this initial phase, the project team visited the buildings, met with key staff and tenants, and gathered data to gain a better understanding of the buildings’ systems, performance metrics, and known issues. The outcome of this phase was performance benchmarks for the buildings which were then used to lay the foundation for operations optimization and to help the project team target and prioritize tasks.

2.    Connect: Unleash the Stranded Data

Throughout the Connect phase, data from the building management system (BMS) (which controls HVAC, domestic hot water, and lighting control systems) was extracted and analyzed. Building upon the foundation established in the Discover phase, the Connect phase enabled a deep understanding of systems performance and opportunities for improvement.

Using a remote fault detection and analytics platform known as SkySpark, a detailed set of building and system-specific “rules” were developed for each facility.  Using this system, the project team was empowered with the ability to cost-effectively analyze and identify issues across thousands of data points for all building systems.

This process allowed the team to uncover issues which might otherwise have gone unnoticed, or been deemed too time consuming to troubleshoot. In the following example a rooftop HVAC system for one of the facilities was experiencing a high frequency of cycling due to poor system tuning and control.

With a relatively simple fix (new control logic and tuning parameters), the system was tuned and tested to decrease the cycling frequency.  As a result, the equipment is now at a much lower risk of failure, comfort control is improved, and operations costs were significantly reduced.

Figure A

Figure A: Before and After Supply Air Temperature Control. Note the significant cycling of supply air temperature from the unit before the changes, resulting in decreased occupant comfort and reduced compressor lifetimes.

3.    Implement: Tune for Increased Performance

Using data gathered and organized during the Connect phase, the project team was able to take action and implement improvements.  Occurring throughout the project, this phase represented a significant portion of the overall value of the CBCx process. Implementation activities were not static, but were iterative to ensure optimal solutions for both energy performance and occupant comfort.

Once issues were identified and a fixes implemented, SkySpark was used to watch the resulting performance and ensure the dual goals of energy optimization and occupant comfort were attained. This involved continued “tweaking” of the controls parameters around the new sequences of operation, which were accomplished through the combination of the remote BMS access and performance analysis in SkySpark.

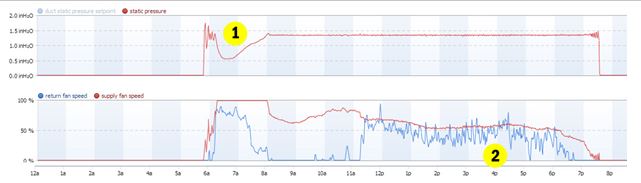

In the following example, trend data from a facility collected from the automation system revealed several problems, including an early-morning drop in static pressure (item 1 in Figure B) and erratic operation of the return fan (item 2 in Figure B).

Figure B

Figure B: Initial Fan Speed and Static Pressure Control

By adjusting the controls parameters for operation of the return fan, consistent static pressure was achieved (item 3 in Figure C). Also, the return fan is now tracking the supply fan with an adjustable offset, thereby eliminating frequent and inefficient cycling (item 4 in Figure C)

Figure C

Figure C: Current Fan Speed and Static Pressure Control

4.    Train: Ensure Persistence through Training, Support, and Documentation

Performance improvements cannot be expect to be maintained in the long-term without proper training and support. PMB’s program includes continuous training for staff on the use of the tools, techniques, and operations procedures to ensure they can continue to optimize performance and identify issues in the future.

Additionally, because no two facilities or building operators are alike, it is necessary to have a unique systems manual for each facility.  These “go-to guides” provides resources for building engineers to make quick and meaningful operational decisions when alerted by the systems, staff or tenants.  The manuals each include a thermal comfort decision matrix, which allows building operators to perform root-cause analyses when responding to zone temperature control issues or comfort calls.

The combination of training on the CBCx process and systems manual significantly “raise the bar” for building engineer performance, ensure the preservation of the implemented energy efficiency measures, and build the capacity for operators to identify and troubleshoot issues in the future.

Conclusion

PMB’s connected building commissioning process has already delivered strong results. The implementation of CBCx across several buildings in the portfolio has led to increased energy efficiency, lower operating expenses, lower tenant costs, and enhanced operator training.

Because most of the energy efficiency measures are low- or no-cost operational changes, the investment required for this program is relatively low, while returns are high.  This is especially true when considering the other long-term benefits of running an efficient facility: longer equipment life and lower total maintenance costs.

Buildings with completed projects have also seen significant declines in the frequency of comfort calls from occupants, coinciding with anecdotal marked improvements in tenant satisfaction (the focus of on-going study). Additionally, systemic operational issues that had persisted since new construction, such as equipment cycling and premature failures, have been resolved, reducing lifecycle operating costs.

Over time, as data analytics become more sophisticated and operators receive more training, PMB will continue to work to achieve even deeper savings and maintain increased property values across their portfolio.
