What You Should Know About Protocols
While Selecting a Building Management System (BMS)

Dr. Abtar Singh
Founder & CEO
Singh360 Inc

Originally published in blog

http://singh360.com/bms-protocols/



Articles
Interviews
Releases
New Products
Reviews
[an error occurred while processing this directive]
Editorial
Events
Sponsors
Site Search
Newsletters
[an error occurred while processing this directive]
Archives
Past Issues
Home
Editors
eDucation
[an error occurred while processing this directive]
Training
Links
Software
Subscribe
[an error occurred while processing this directive]

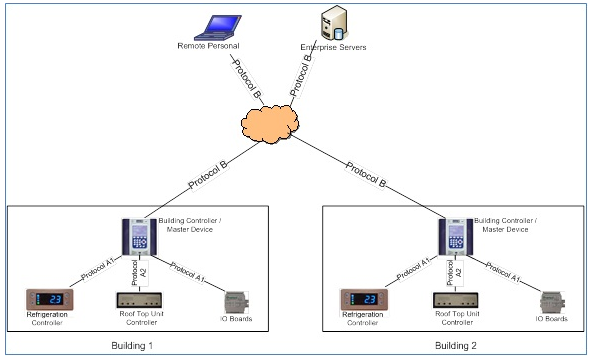

Protocols are languages by which two devices communicate and exchange data.  These devices are microprocessor-based products, such as an input/output board, roof top unit controller (RTU), Chiller controller, user’s laptop/desktop computer or even central enterprise servers.  The picture below shows that the master building management system (device) communicates with devices, such as RTU, refrigeration controllers, energy meters and other input/output boards within a building.  Similarly, the Building controller communicates with remote users and enterprise servers via the internet to display temperature, operating parameters or energy data.  Protocols are defined by the data structures that  explain the format and meaning of each data (almost like a dictionary that explains a word’s spelling and meaning).  Both devices have to know the data structure in order to facilitate the exchange of data.  The data exchange usually happens over some physical wire (such as on a twisted pair RS485 or Ethernet CAT5 cable).  It can also happen wirelessly over wifi network.

Building Communications


In order for two people to have a meaningful exchange they need to speak the same language and have a medium to communicate (e.g. phone). This language is equivalent to a protocol in the BMS world and the phone is equivalent to a physical wire.  Hence, the term BACNet over IP means that the protocol is BACNet and the physical layer is an IP network.

The four key aspects to protocol are:

  1. Open
  2. Standard
  3. Inter-operable
  4. Proprietary

A protocol is “open” when the creator of the protocol makes it readily available to everyone (e.g. through their web-site).  “Standard” protocol requires all parties to agree on a data structure that can be implemented on their respective devices.   If there is consistency across an industry,  then the protocol becomes an industry standard e.g. BACnet, modbus.  “Inter-operable” is the characteristic of a protocol that makes it vendor agnostic  e.g. a controller from one vendor can be replaced with a controller from a different vendor.  ”Proprietary” protocols are those that make the protocols restricted to the creator of the device by not sharing the data structure.

It is not difficult to imagine why proprietary protocol is not considered best practice. One of the key criteria in selecting BMS is to make sure that the language/data structure is not proprietary.  In order to identify whether or not a protocol is open, you need to ask the following questions to the BMS vendor:

a)  Can your competitor exchange data with your BMS?
b)  Is your protocol published in such a way that it is easily accessible to everyone (including the competitor)?

[an error occurred while processing this directive] A proprietary protocol is not good for the client because once bought, they are locked with that vendor for all of their BMS needs. This means that one cannot remotely access the BMS, for example, to manipulate the set points without the vendor’s software.  On the other hand, an “open” and “standard” speaking device will not lock you with a vendor and will enable you to shop freely for enterprise solution providers.

What is the best protocol for BMS?

When a master controller is exchanging data with devices and meters within a building, the standard BACNet or Modbus or any other standard protocol should be preferred.  Otherwise, make sure it is at least “open” for anyone to read and write information.  For enterprise access (protocol B in picture), people have used BACnet over IP.  However, the current trend is to use internet technology for data exchange.  Companies like Honeywell Tridium (Niagara framework), Resource Data Management (Data Manager), Echelon Corps (iLon) and many others have used standard internet XML data with web-services to exchange data.  Even the ASHRAE BACNet committee has a XML working group that is defining applications of the eXtensible Markup Language (XML) relevant to BACnet systems.  They are also working on Web service definitions that will allow data exchange between building automation and control systems and various enterprise management systems.

To summarize, when selecting devices ensure the following:


About the Author

Dr. Abtar Singh is the founder & CEO of Singh360 Inc (www.singh360.com), a facility management consulting firm.   He specializes in facility-management systems, design, engineering, performance monitoring, predictive analytics, and optimization of energy and maintenance systems.  He can  be reached at abtar@singh360.com.
