KNX as the future standard for the USA

The KNX topology has no limit to the size and scale of the building
Philip Juneau
Philip R. Juneau
Chief Commercial Officer
Automated Technology Company (ATC),
Vice President
KNX USA National Group

This article excerpt appears courtesy of KNXtoday.com

Articles
Interviews
Releases
New Products
Reviews
[an error occurred while processing this directive]
Editorial
Events
Sponsors
Site Search
Newsletters
[an error occurred while processing this directive]
Archives
Past Issues
Home
Editors
eDucation
[an error occurred while processing this directive]
Training
Links
Software
Subscribe
[an error occurred while processing this directive]

I’d like to be upfront about my main goal, which is to promote the adoption of KNX in the USA. So I thought I’d start by focusing on the simplicity and benefits of KNX when applied here and, specifically, how it is a proven, robust field level protocol and standard. I will also show its application in commercial buildings as a complete, multiple-trade, field level protocol with a streamlined interface into the overall building energy management system (BEMS), especially regarding IP convergence.

In this article, I’ll cover some of the key benefits:

Streamlined design and commissioning

The KNX topology has no limit to the size and scale of the building – it is equally well-suited to small residential buildings as well as large-scale commercial ones. One KNX line can support up to 64 KNX devices using a single power supply, and the lines can include multiple KNX lines of up to 64 devices by using an IP or KNX TP network, making it virtually limitless. This simplified engineering enables standardised and repeatable designs, resulting in projects being of higher quality and less risk, and greater ease of troubleshooting and optimisation. For the installer, it also means simplified installation requirements.

When the design is complete, the KNX components can be pre-programmed, thus reducing the technician’s field configuration and commissioning time.

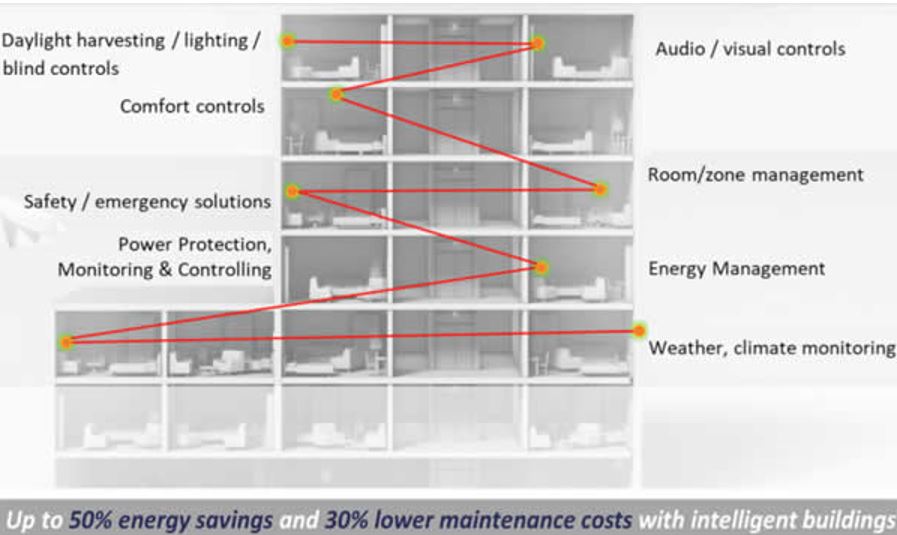

  Multiple KNX applications in one building.

Multiple KNX applications in one building.

Installation material and labour savings

When using the KNX protocol completely for the occupant/room i.e., field level, you can save on costs thanks to less control wiring and power required for LED lighting, daylighting (blinds) and HVAC when compared to standard analogue control. Savings can also be made on the amount of installation labour to install the wire runs for all three trades, as well as on materials thanks to all three trades requiring only one combined room sensor/switch instead of three.

If that isn’t enough, the robust KNX control signal in the KNX-rated cable allows for installation in traditional raceways, trunking, conduit and modern prefabricated wiring systems. This means that the KNX wire can be installed with the power wiring, negating the requirement for a separate raceway for low voltage (e.g., BACnet), thus saving significant time and money.

Multiple market options, proven and future-proof

The key benefit to the KNX protocol is that it is a truly open protocol system with certified products from many different manufacturers that seamlessly connect on the same network without the need for special application programs or drivers. With KNX based systems, there is a guaranteed forwards and backwards compatibility of products for extension on the existing bus network, making it virtually future-proof. Also, given the choice of manufacturers, you can select the best products for the best application. For example, you can prefer one manufacturer’s DIN-rail products whilst selecting another for the switches and sensors. This provides flexibility for customers from both an aesthetic and application perspective.

Complete field level protocol across all trades

As a field level protocol for lighting, blinds (daylighting), HVAC, security, etc, KNX provides ONE platform and approach to all trades. This removes complexity and streamlines execution during design and construction for architects, engineers, contractors and building owner/operators. KNX also has multiple interfacing options with other systems and protocols through established gateways that are available from numerous suppliers. These include OPC and BACnet servers, DALI and many others. These interfaces and gateways are commonly used all over the world, having been tried and tested as proven.

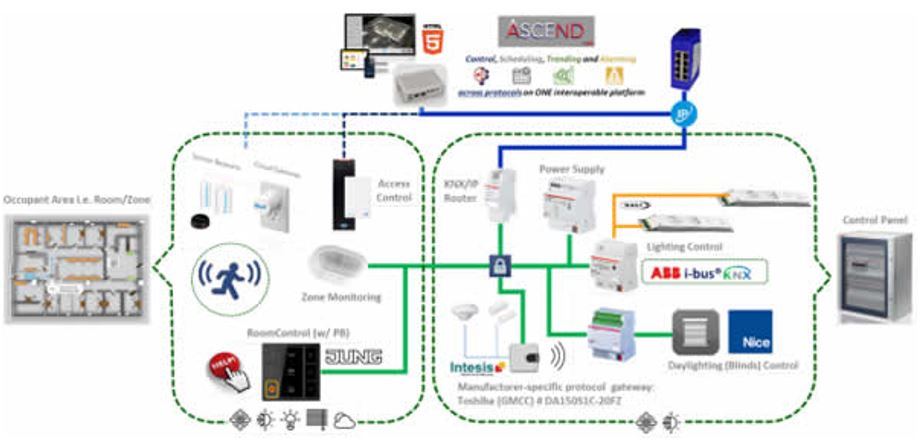

Example of occupant area room control completely based on KNX.

Example of occupant area room control completely based on KNX.

To continue reading, click here <http://knxtoday.com/2019/11/14528/clippings-from-america-knx-as-the-future-standard-for-the-usa.html>
