Standing at the Intersection of Automated Fault Detection & Diagnostics and Demand Management: Savings Ahead!

Dynamic demand management strategies that consider energy pricing and the actual operations of a facility through the integration of Automated Fault Detection and Diagnostics enable large automated energy savings within defined comfort thresholds.

Kelsey Haas,
Energy Management  Coordinator,
Ezenics, Inc.


Articles
Interviews
Releases
New Products
Reviews
[an error occurred while processing this directive]
Editorial
Events
Sponsors
Site Search
Newsletters
[an error occurred while processing this directive]
Archives
Past Issues
Home
Editors
eDucation
[an error occurred while processing this directive]
Training
Links
Software
Subscribe
[an error occurred while processing this directive]

Why Should YOU Care About Managing Demand?

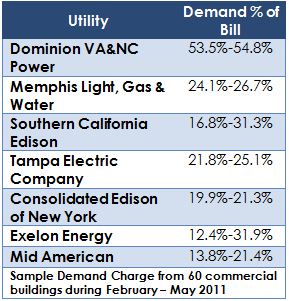

Demand Charges Electric demand is becoming increasingly imperative to manage for commercial energy consumers.  In the demand response sector, utilities incentivize or provide rebates to those curtailing load during peak times on the grid.  The lesser known consequence of the increasing importance of demand is that in the last 5 years, electricity consumption charges have decreased, but demand charges have significantly risen in both cost and percentage of the monthly utility bill.  The increase in demand charges on the monthly utility bill is not always obvious to consumers as taxes and other line item charges that were once based on kWh are now based on the monthly peak kW instead.

Unaware of the potential impact demand can have on the monthly utility bill, energy and facility managers often put emphasis instead on managing consumption.    However, due to the dual importance of reducing demand on the grid during critical times and reducing peak demand to lessen the monthly utility bill, managing demand in a facility or portfolio can represent a significant opportunity to save energy costs!

Operating Conditions Obstacles to Demand Management Adoption

Demand management strategies are often fixed, formulated based on operational assumptions and not on the current actual operations of the facility.  The actual operational conditions of a facility can make static demand management strategies ineffective, leading to undesirable comfort issues and minimized energy reduction (sometimes even an increase in demand!).  This fact has led to conservative demand management deployments or none at all, leaving a significant opportunity to earn savings or incentives.

Obstacles to Demand Management Adoptions There are a myriad of issues that would contribute to the failure of the deployment of a static demand management strategy, including: if the standard cooling setpoint or schedule has been changed, the controller is offline, HOA lighting switches are set to manual, there are already comfort issues in a space, equipment has failed potentially causing increased zone temperature in the space and an adjacent zone (this would cause the unit in an adjacent zone to “work harder” than it normally would).  These situational conditions provide only a few of the issues that can potentially plague a static demand management event, preventing optimized performance.  With the numerous variables that must be accounted for in order to achieve building energy efficiency, how do we account for these and still provide an optimized solution?

AFDDI Enables Demand Management AFDDI™ Enables Demand Management

Utilizing AFDDI™ provides significant insight into building operations and greatly enhances the ability to quickly and reliably find problems that can be prioritized across a portfolio for issues that contribute to the electric demand.  Often, identified faults do not have to be eliminated in order to achieve Demand Management results; instead, the dynamic demand management strategies take into account the analytic outputs to adjust strategies accordingly and optimize load shed and therefore monetary results.

Optimized Demand Response Deployment

Optimized Demand ResponseThe opportunity to get involved in Demand Response programming is well known in the industry with the allure of monetary incentives from utilities and the ease of solutions provided by vendors.  Even though DR programs are being adopted all over the US and internationally, there are still many commercial buildings that are not participating or are not maximizing the opportunities associated with DR programming.  In the Demand Response setting, Fault detection and diagnostics in an enterprise platform provides the ability to manage many events, vendors, and locations concurrently.  The current state of equipment and the environment within a building is known, so load shed strategies can be adjusted accordingly providing dynamic load curtailment strategies that maximize event performance while ensuring that there are no adverse comfort issues.  Thus, confidence is enabled so that a more aggressive solution that maximizes results can be achieved.

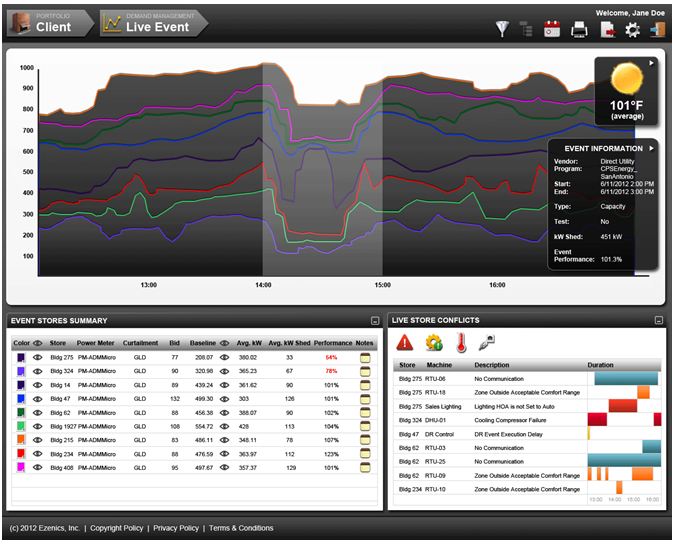

Client Graph

The Opportunity in Limiting Peak Demand

The increase in charges based on the peak kW during the month, combined with the ability to deploy a dynamic strategy driven by fault detection and diagnostics analytics has created a significant opportunity for savings on a commercial building’s monthly electric utility bill.

If You Can Do DR, DL Can Work for You Too!

Often commercial buildings that are successful in demand response programming do not implement any demand limiting strategies due to the varying conditions in enrivonment, potential adverse implecations on comfort in the space, and difficulties predicting times of peak demand.  Successful demand response deployment provides proof that the strategies utilized are acceptable by sheding a determined amount of load while not affecting comfort in the facility.  These existing strategies can also provide the same benefits in limiting demand.  The challenge with doing this is to know when to deploy the strategy and for how long.  These are variables that are already determined with demand response, but are less pronounced in demand limiting activities.

Determining the Opportunity for Savings

Demand Response often occurs during the hottest days of the year where demand on the grid is the highest, while many times the greatest opportunities for limiting demand are during months where the environmental conditions create a few sharp peaks.  Let’s explore this concept further…

Many facilities have energy signatures that would require running a Demand Limiting curtailment strategy only a small percentage of the time throughout the month in order to achieve significant savings through the reduction of the peak demand.  There are months where the opportunity for limiting demand is low because the energy signature displays a smoothed curve.  The smoothed load necessitates elongated demand limiting curtailment events in order to shed the amount of load necessary to affect the monthly peak.  Elongated event periods where HVAC and Refrigeration loads are used to curtail can also cause significant comfort issues, nullifying monetary gain.  Therefore, during months where peak curves are smooth, demand limiting is not opportunistic.

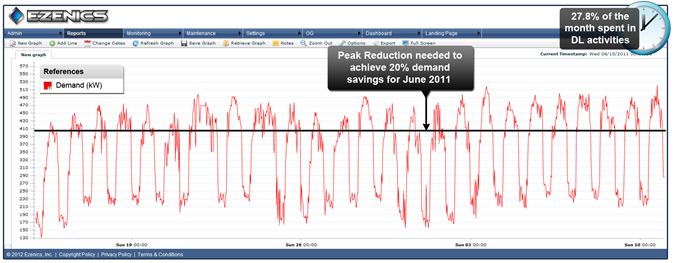

Energy signature

Conversely, there are often more months throughout the year where the energy signature provides sharp peaks for only a few days throughout the monthly billing cycle.  These sharp peaks provide the highest opportunity to curtail load because they require short periods of load shed that will not adversely affect comfort.

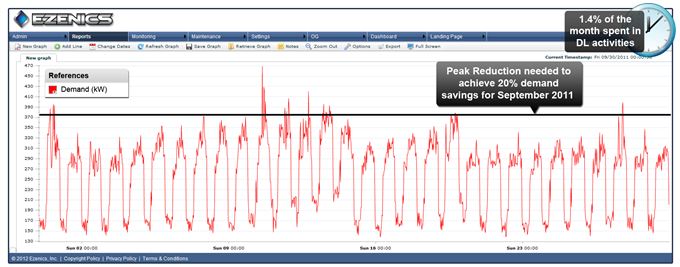

Peak reduction

Why Don’t Traditional Demand Limiting Strategies Work?

Traditional demand limiting can entail setting a kW threshold in a facility’s control programming that will enact a scheduled set of actions to curtail load on specific pieces of equipment once the facility reaches the pre-determined threshold.  It is commonplace to find facility managers not utilizing this feature because the control strategy often does not take into account comfort thresholds and the actual operational conditions of the facility.  Another limitation of such an approach is that in months where the peak does not exceed the set limit, no demand reduction initiatives are initiated and potential savings are unexploited.  How do we adjust traditional demand limiting control strategies to make them more dynamic and adjust based on operational conditions?

AFDDI™ Driven Demand Limiting

AFDDI Driven Demand LimitingEquipment and systems data that is collected every minute from the building drive real time analytics that are utilized to provide equipment and operational conditions to prediction models that determine when to run a demand limiting strategy.  If the strategy is enabled prematurely then comfort thresholds may be breached before the peak occurs; thereby causing the peak to not be avoided and monetary gain nullified.  However, if the peak is avoided, the space may be uncomfortable and potential de-merchandizing can occur.  Conversely, if the strategy is enabled belatedly, the peak for the month may be missed.   In order to avoid the potential implications of poorly timed strategy deployment, prediction models may be employed that take AFDDI™ results as inputs so that the demand reduction strategy can be dynamic and perform according to the real-time operations of the facility.  Thus, the strategy is constantly tuned according to the operational conditions so that peaks are avoided without having to fix identified faults.

A significant benefit to applying AFDDI™ analytics to equipment and controls data is that they can bring to light issues that are contributing to the demand peak for the month.  Solving these issues can often be one time fixes or can be done through automated supervisory control.  Poor equipment staging is a common issue that can be avoided through alterations to a control strategy that will not cause any adverse implications on comfort.  This is very common as equipment is often controlled with separate thermostats or even control systems without efficient logic in place to avoid equipment running at once.  A common example of such an occurrence is non-optimal start sequences.  Staggering run times on units will often result in one unit being able to meet the demand before others even need to start.  Strategies can additionally be put in place for refrigeration by optimizing defrosts cycles with no effect on meeting the needed setpoints.

[an error occurred while processing this directive] Additonal Opportunities

The knowledge of the actual operational conditions of a facility combined with energy data can additionally enable time of use and real-time energy pricing optimization strategies to further maximize the savings opportunities which dynamic strategies can provide.

Summary

As the importance of demand increases and the costs associated with it continue to rise, managing demand will become more and more financially advantageous to facility owners.  However, the current static demand management model needs to change, adapting to constantly changing operational conditions that can potentially derail a strategies.  The solution…AFDDI™ drives demand management solutions which provide insight into the real-time operational conditions of a building, allowing for dynamic curtailment strategies that do not adversely impact comfort.   These dynamic AFDDI™ driven strategies can be easily scaled across a potfolio and managed centrally to provide significant monetary benefit to the customer.

Contact Ezenics, Inc. to learn more about how AFDDI™ is enbling demand management tools and startegies that achieve enterprise wide energy savings.
